Orchestration Agents

A single call answers one question. Some tasks need several steps: call, wait, try again, send a text, and stop at the goal. An Orchestration Agent handles that task.

• An Orchestration Agent is the reusable definition: instructions, permitted agents, limits for each run, and a calling window.
• An orchestration run is one execution of an Orchestration Agent for one set of inputs. A run can last minutes, hours, or days.

For example, a run can call a patient to confirm an appointment. If nobody answers, it waits until later in the calling window and tries again, within its limits. When the patient confirms, the run finishes with that result in its analysis. The steps depend on the instructions and on what happens. Two runs of the same agent do not have to follow the same sequence.

Orchestration Agent fields

Field	Required	What it does
name	Yes	Unique in your organization.
instructions	Yes	The goal of each run and how to reach it.
input_schema	Yes	JSON Schema for each run's inputs.
analysis_prompt, analysis_schema	Yes	How Resia turns the finished run into a structured result.
max_calls	Yes	The most calls one run may place. 0 means the run cannot call.
max_spend_in_cents	Yes	The most one run may spend.
calling_window_start_local_time, calling_window_end_local_time	Yes	The local times, as HH:MM:SS, between which a run may place calls.
triggerable_call_agent_ids	No	The Call Agents that runs may use to place calls.
max_messages	No	The most text messages one run may send. The default is 0, which means none.
triggerable_chat_agent_ids	No	The Chat Agents that runs may start chats with. This also needs max_messages above 0.
milestones	No	Named stages that a run can report, such as reached_patient. Each has a name and a description.
tools	No	The names of your organization's custom tools that runs may use, at most 64. See Give your agents a custom tool.
run_ended_webhook_url	No	An HTTPS URL that receives orchestration_run.ended when a run finishes.

Every Call Agent and Chat Agent that you list must belong to your organization and must not be archived.

In Orchestration Agent instructions, $name refers to a run input, and every variable must appear in input_schema.properties. Resia gives the validated inputs to the agent as a separate JSON object. It does not replace the variables in the text.

Like other agents, a new or edited Orchestration Agent can need review before its runs place production calls. Read review_status.

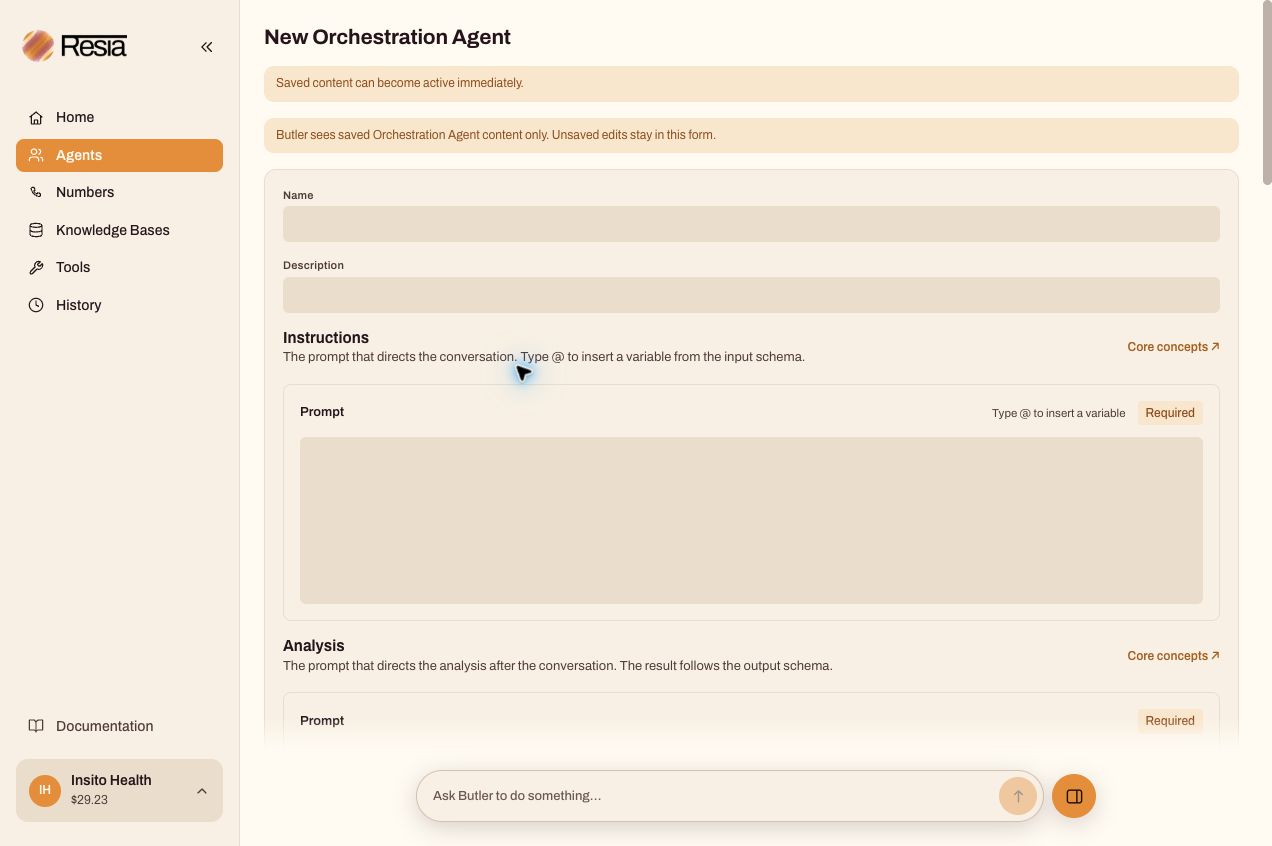

You can also create an Orchestration Agent in the portal under Agents → New agent.

Chats in a run

A run can start a text chat with a person, the same way it places a call. The run needs a Chat Agent in triggerable_chat_agent_ids and max_messages above 0.

• A chat from an Orchestration Agent is an SMS chat. The run's agent writes and sends the opening text.
• Each started chat counts as one message against max_messages. It must start inside the calling window.
• The person's individual replies do not wake the run. The Chat Agent answers them.
• When the chat ends, Resia wakes the run with its outcome: completed, cancelled, or failed. Resia includes the analysis of a completed or cancelled chat. The run can wait for that outcome and act on it, as it does after a call.

Visual Builder

Open an Orchestration Agent in the portal to see its Visual Builder tab. The canvas shows these parts of one run:

• Its start and inputs.
• The Orchestration Agent and its limits.
• The Call Agents and Chat Agents it can use.
• Messages, waits, and milestones.
• Outputs and the run-ended webhook.

Edit the limits and the allowed agents on the canvas or on the Settings tab.

Calling window and time zone

The calling window has no time zone of its own. Each run reads it in the time zone from inputs.timezone, an IANA name such as America/Los_Angeles. If a run has no timezone input, Resia uses America/New_York. Resia refuses an unknown time zone with 422.

Run status

Status	Meaning
queued	The run waits to start.
running	The run does its next step.
waiting	The run waits, for example for a call to end or for the calling window to open. waiting_for says why.
succeeded	The run finished. Its result is in analysis.
failed	The run could not finish. error_code gives the reason.
cancelled	Someone cancelled the run.

Each run also reports milestone (the last stage it reached) and charges (what it cost so far across calls, messages, and model use).

error_code on a failed run is one of these:

error_code	Meaning
RUNTIME_FAILURE	The run stopped on an error.
INVALID_ANALYSIS	The result did not match analysis_schema.
BUNDLE_VERIFICATION_FAILED	The agent setup did not pass its check.

List runs

GET /v1/orchestration-runs lists your organization's runs, newest first. Filter by orchestration_agent_id, which also finds the runs of an archived agent, or by one tag pair with tag_key and tag_value. See Tags. Follow next_cursor for the next page. Each item is the same record that GET /v1/orchestration-runs/{orchestration_run_id} returns.

To list the calls or the chats of one run, send orchestration_run_id to GET /v1/calls or GET /v1/chats.

To see each step of one run, read it with include_tool_activity=true. See See each tool call of an orchestration run.

Limits and money

• A run cannot place more than max_calls calls, send more than max_messages texts, or spend more than max_spend_in_cents.
• Runs also count against your organization's call and text rate limits.
• A text reply to a one-way text that the run sent does not reach the run. For a two-way conversation, start a chat. The run gets the chat's outcome when the chat ends. See Chats in a run.

Next step

API reference

Orchestration Agents · Orchestration Runs

The old public names are deprecated until 2026-10-25. Read Deprecated names before you update an existing integration.
